O-Band Bismuth-doped Fiber Amplifier
Amonics’ O-band Bismuth-doped fiber amplifier (BDFA) uses bismuth-doped fiber as the gain medium. The BDFA features high small signal gain and low noise figure. The silica-based Bismuth-doped fiber offers the similar fundamental advantages as erbium-doped fiber used for amplification in the C and L bands.
The turnkey microprocessor-controlled BDFAs provide illustrative alarms and status indicators. An integrated RS232 computer interface enables easy control, diagnostic functions and data acquisition. The BDFAs are available in both benchtop and rackmount casings.
O-Band BDFA (single channel) Specifications
| ABDFA-O-18 | ABDFA-O-21 | |
|---|---|---|
| Operating Wavelength | 1290 nm to 1360 nm | 1290 nm to 1360 nm |
| Input Signal Level | -30 to 0 dBm | -30 to 0 dBm |
| Saturation Output Power at 1310 nm, 0 dB input power | Min. 18 dBm | Min. 21 dBm |
| Noise Figure at 1310 nm, 0 dBm input power | Max. 8.0 dB | Typ. 6.5 dB, Max. 8.0 dB |
| Small Signal Gain at 1310 nm, -30 dBm input power | Min. 23 dB | Min. 23 dB |
| Input / Output Isolation | Min. 30 dB | Min. 30 dB |
| Control Mode | ACC, APC (optional) | ACC, APC (optional) |

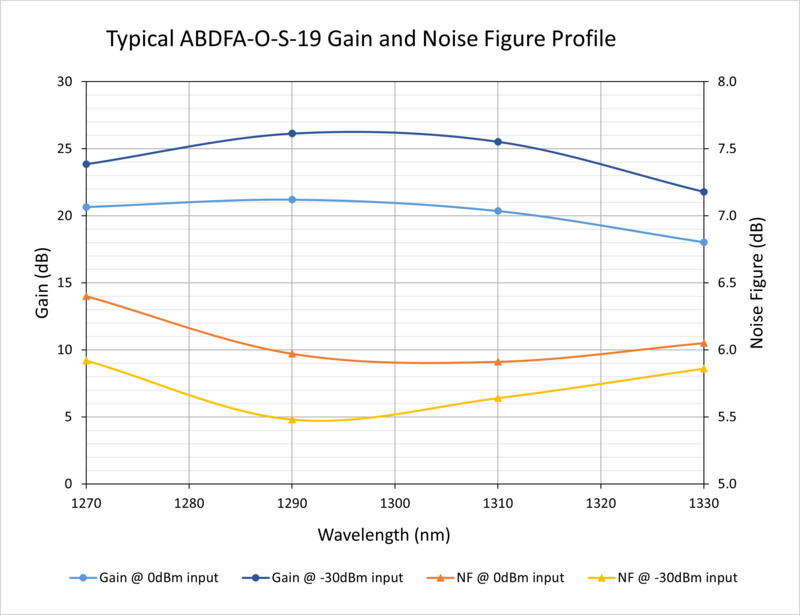

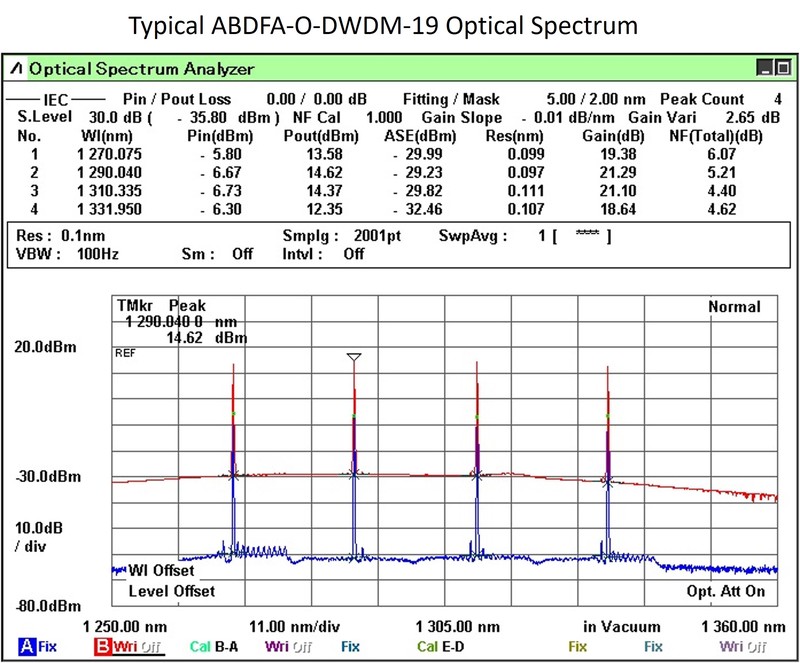

O-Band BDFA (multichannel) Specifications
| ABDFA-O-DWDM-19 | |
|---|---|
| Operating Wavelength | 1280 nm to 1330 nm |
| Composite Input Power | -30 to 0 dBm |
| Composite Output Power at 0 dBm input power | Min. 19 dBm |
| Noise Figure at 0 dBm input power | Typ. 6.5 dB, Max. 7.0 dB |
| Gain Flatness | Max. ±1.5 dB |
| Input / Output Isolation | Min. 30 dB |
| Control Mode | ACC |
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to 40 |
| Storage Temperature | °C | -10 to 70 |
| Power Supply | VAC | 90 – 240, 47 – 63Hz |
| Benchtop Dimensions | mm | 260(W) x 330(D) x 120(H) |
| 2U Rackmount Dimensions | mm | 485(W) x 360(D) x 90(H) |
| Mechanical Safety Control | Key-lock switch, BNC interlock key | |
| Optical Power Monitoring | Output power, Input power | |
| Remote Control Port | DB-9 female (RS232), Control software included RJ-45 (TCP/IP Ethernet) (optional) | |
| Protection | Pump laser (TEC) overheat | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | |
| Optical Fiber | SMF-28 |
Ordering Information
| Product Code |
|---|
| ABDFA-O-aa-b-cc / ABDFA-O-DWDM-aa-b-cc |
| aa : Saturation output power or Composite output power in dBm |
| b: B for Benchtop, R for 19” Rackmount |
| cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Applications
Key Features
| High output power |
| Similar gain & noise figure as typical EDFA |
| Lower power consumption compared to conventional Raman amplifier |
| Distortion-free amplification |
