Ytterbium-doped Fiber Amplifier (YDFA)


Ytterbium-doped Fiber Amplifier (YDFA) is another Amonics specialised product line. Like our highly recognized optical amplifiers, the YDFA offers high output power and high gain with exceptional reliability, which is ideal for high power YDFA applications.

The turnkey microprocessor controlled benchtop YDFAs manage alarms and status indicators. An integrated RS232 or Ethernet computer interface enables easy control, diagnostic functions and data acquisition. Available options include single frequency operation, linearly polarized operation.

Benchtop YDFA Specifications

AYDFA-18 AYDFA-20 AYDFA-23 Remarks
Saturation Output Power (at 0dBm input signal) Min. +18 dBm Min. +20 dBm Min. +23 dBm
Operating Wavelength 1054 nm to 1074 nm 1054 nm to 1074 nm 1054 nm to 1074 nm extension to 1090 nm is available
Input / Output Isolation Min. 25 dB Min. 25 dB Min. 25 dB
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB
Control Mode ACC, APC, AGC (optional) ACC, APC, AGC (optional) ACC, APC, AGC (optional)
Other wavelength range or other output power models are available upon request.

Benchtop High Power YDFA Specifications

AYDFA-27 AYDFA-30 AYDFA-33 Remarks
Saturation Output Power (at 0dBm input signal) Min. +27 dBm Min. +30 dBm Min. +33 dBm
Operating Wavelength 1054 nm to 1074 nm 1054 nm to 1074 nm 1054 nm to 1074 nm extension to 1090 nm is available
Input / Output Isolation Min. 25 dB Min. 25 dB Min. 25 dB
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB
Control Mode ACC, APC, AGC (optional) ACC, APC, AGC (optional) ACC, APC, AGC (optional)
Other wavelength range or other output power models are available upon request.

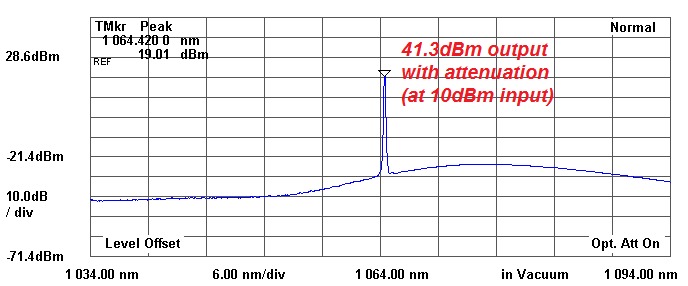

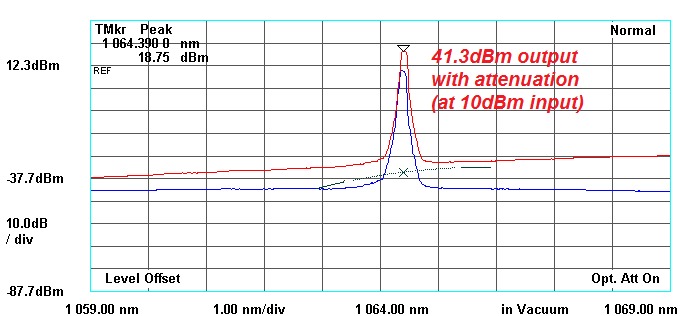

Rackmount High Power YDFA Specifications

AYDFA-37 AYDFA-40 AYDFA-43 Remarks
Saturation Output Power (at 10dBm input signal) Min. +37 dBm Min. +40 dBm Min. +43 dBm
Operating Wavelength 1054 nm to 1074 nm 1060 nm to 1074 nm 1064 nm to 1074 nm extension to 1090 nm is available
Input Isolation Min. 25 dB Min. 25 dB Min. 25 dB
Output Isolation Min. 20 dB Min. 20 dB Min. 20 dB
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB
Control Mode ACC, APC (optional) ACC, APC (optional) ACC, APC (optional)
Other wavelength range or output power models are available upon request.

General Parameters

unit value remarks
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VAC 90 – 240, 47 – 63Hz
Benchtop Dimensions mm 260(W) x 330(D) x 120(H)
2U Rackmount Dimensions mm 485(W) x 515(D) x 90(H) or 485(W) x 360(D) x 90(H)
3U Rackmount Dimensions mm 485(W) x 615(D) x 150(H)
Mechanical Safety Control Key-lock switch, BNC interlock key, Emergency Stop Button [for Output Power >2W and 2U rackmount]
Optical Power Monitoring Output power, Input power [Output Power > 0.5W]
Remote Control Port DB-9 female (RS232), Control software included RJ-45 (TCP/IP Ethernet) (optional)
Protection Loss of input power, Output power protection [Output Power > 0.5W], Pump laser (TEC) overheat
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC
Optical Fiber HI 1060

Options

Linear polarized
Narrow bandpass filter

Ordering Information

Product Code
AYDFA-aa-b-cc
aa: Saturation output power in dBm
b: B for Benchtop case, R for 19” Rackmount case
cc: FA for FC/ APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, NC for bare fiber


Key Features

Turnkey Device
RS232 computer interface
High output power
Single mode fiber delivery
Highly reliability
Long operating life
