1050nm ASE Light Source


Amonics' ALS-1050 series offers a Ytterbium-doped fiber ASE broadband light source in the wavelength range of 1000nm to 1100nm, offering 10mW and 20mW output power. It is particularly useful for 1060nm fiber laser component characterization.

The benchtop version incorporates a user-friendly front panel housing a LCD monitor display, key switch, power control knob and optical connectors. RS232 or Ethernet computer interface is also equipped.

The OEM module version is an ideal building block for OEM system integration, especially for fiber optical sensing and optical tomography applications. It requires a single +5V power supply only.

Specifications

ALS-1050-10 ALS-1050-20
Output Power Min. 10 mW Min. 20 mW

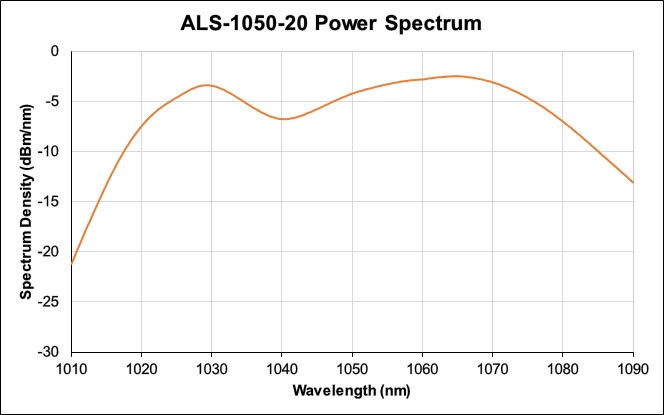

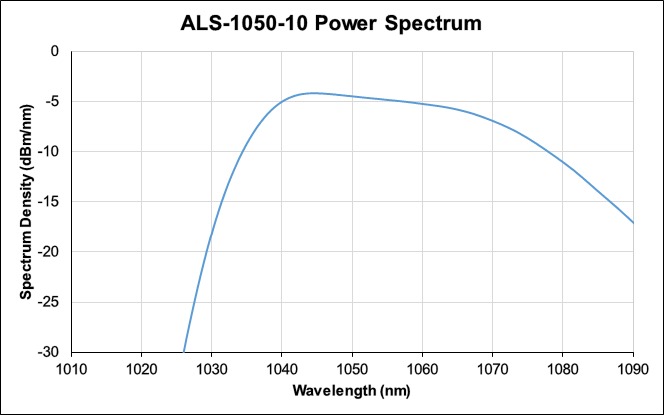

Spectral Range 1040 nm to 1075 nm 1020 nm to 1080 nm
Min. Spectral Density -12 dBm/nm -12 dBm/nm
Output Stability Max. + / - 0.03 dB ( over 8 hrs), Max. + / -0.005 dB (over 5 mins) Max. + / - 0.03 dB ( over 8 hrs), Max. + / -0.005 dB (over 5 mins)
Output Isolation Min. 40 dB Min. 40 dB
Output Polarization Max. 5 % Max. 5 %
Other output power models are available upon request.

General Parameters

unit benchtop module
Operation Temperature °C 0 to +40 0 to +40
Storage Temperature °C -10 to +70 -10 to +70
Power Supply V 90 – 240VAC, 47 – 63Hz 5.0 ± 0.1 VDC
Dimensions mm 260(W) x 330(D) x 120(H) Customized on request
Electrical Connector NA 14-pin MIL Socket
Protection Pump laser (TEC) overheat Pump laser (TEC) overheat
Optical Power Monitoring Output power Output power
Mechanical Safety Control Key-lock switch, BNC interlock key NA
Remote Control Port RS232 / Ethernet NA
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC FC/APC, FC/UPC, SC/APC, SC/UPC
Optical Fiber HI 1060 HI 1060

Ordering Information

Product Code
ALS-1050-aa-b-cc
aa: Output power in mW
b: M for Module, B for Benchtop
cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC


Key Features

Wide spectral range
Good spectral stability
Compact
Good performance cost ratio
Highly reliable and durable
