Nano-second Pulse EDFA


Amonics' Pulse EDFA is designed for amplifying optical short pulse to high pulse energy level. Amonics’ engineers have a lot of knowledge in designing pulse optical amplifier, especially handling the nonlinearity in optical fiber due to high pulse peak power of the optical short pulse. We can design custom pulsed EDFA for different applications, such as fiber optic sensing and free space optical sensing.Our pulse EDFA has been widely used in industrial fiber laser based Lidar systems for wind velocity detection.

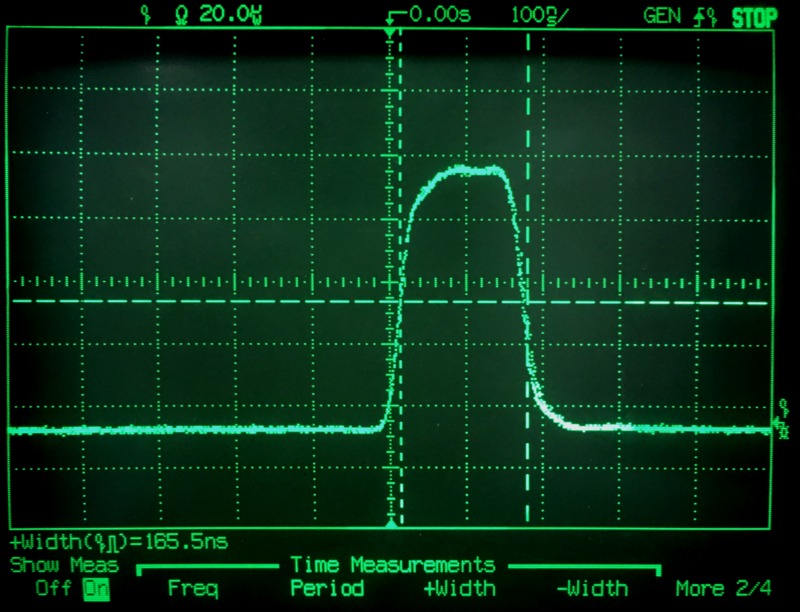

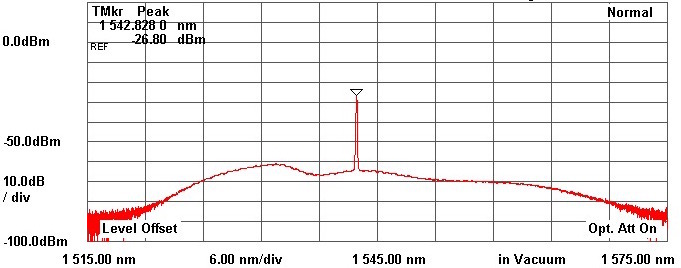

Nanosecond Pulse Amplifier Specifications:

AEDFA-NS AEDFA-PM-NS
Operating wavelength Typ. 1540 nm to 1560 nm Typ. 1540 nm to 1560 nm
Pulse Width Typ. 10 ns to 1000 ns Typ. 10 ns to 1000 ns
Saturated Output Power up to (at 10 mW peak input power) Typ. 2 W Typ. 2 W
Pulse peak power up to (No distortion) Typ. 1 kW Typ. 1 kW
Input Signal Peak Level Typ. 10dBm Typ. 10dBm
Pulse Repetition Rate Typ. 100 KHz to 100 MHz Typ. 100 KHz to 100 MHz
Input / Output isolation Min. 30 dB Min. 30 dB
Polarization dependent gain Typ. 0.3 dB, Max. 0.5 dB NA
Polarization mode dispersion Typ. 0.3 dB, Max. 0.5 ps NA
Polarization Extinction Ratio NA Typ. 23 dB, Min. 20 dB
Optical Fiber SMF-28 PM 1550 Panda Fiber
Different output power models are available upon request

10ns Pulse Amplifier Specifications:

AEDFA-NS-10 AEDFA-PM-NS-10
Operating wavelength Typ. 1540 nm to 1560 nm Typ. 1540 nm to 1560 nm
Pulse Width Typ. 5 ns to 10 ns Typ. 5 ns to 10 ns
Saturated Output Power up to (at 10mW peak input power) Typ. 10 W Typ. 10 W
Pulse peak power up to (No distortion) Typ. 10kW Typ. 10kW
Input Signal Peak Level Typ. 10 dBm Typ. 10 dBm
Pulse Repetition Rate Typ. 100 KHz to 100 MHz Typ. 100 KHz to 100 MHz
Input / Output isolation Min. 30 dB Min. 30 dB
Polarization dependent gain Typ. 0.3 dB, Max. 0.5 dB NA
Polarization mode dispersion Typ. 0.3 dB, Max. 0.5 ps NA
Polarization Extinction Ratio NA Typ. 23 dB, Min. 20 dB
Optical Input Fiber SMF-28 PM 1550 Panda Fiber
Optical Output Fiber LMA 25/300 GDF PM LMA 25/300 GDF
Different output power models are available upon request

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VAC 90 – 240, 47 – 63Hz
Benchtop Dimensions mm 260(W) x 330(D) x 120(H)
Control Keylock switch, Pump laser current
LCD Display Output power, Pump laser current, Input power (Optional)
Computer Interface RS232 (Control software & connection cable included) / Ethernet (Optional)
Protection Pump laser overheat warning
Optical Connector FC/APC, collimator or bare fiber (No output connectors for output power >2W)

Options

Optical bandpass filter

Ordering Information

Product Code
AEDFA(-PM)-NS-aaa-bb-cc-B-dd
aaa : Pulse Width in ns
bb: Repetition Rate in kHz
cc: Average Output Power in dBm
dd: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, CL for collimator, NC for bare fiber


Key Features

High output power
High gain
Wide operation range
Highly reliable and durable
