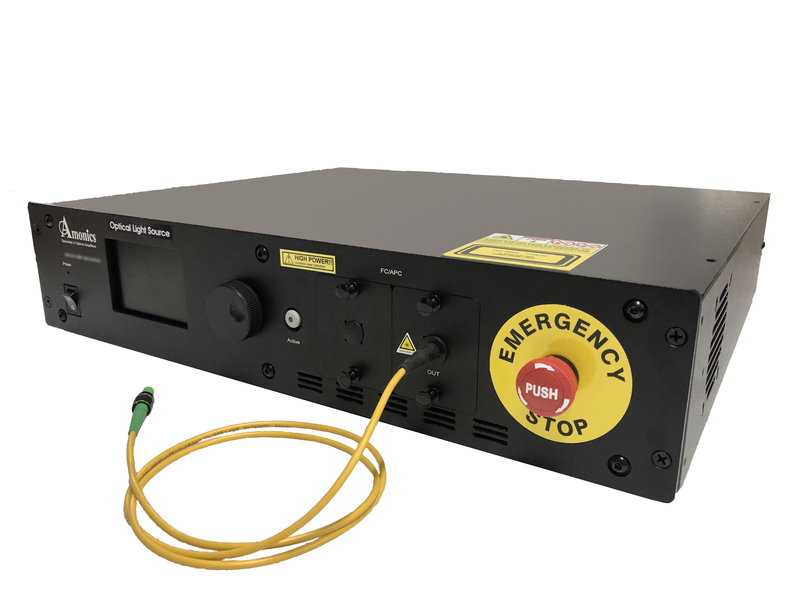

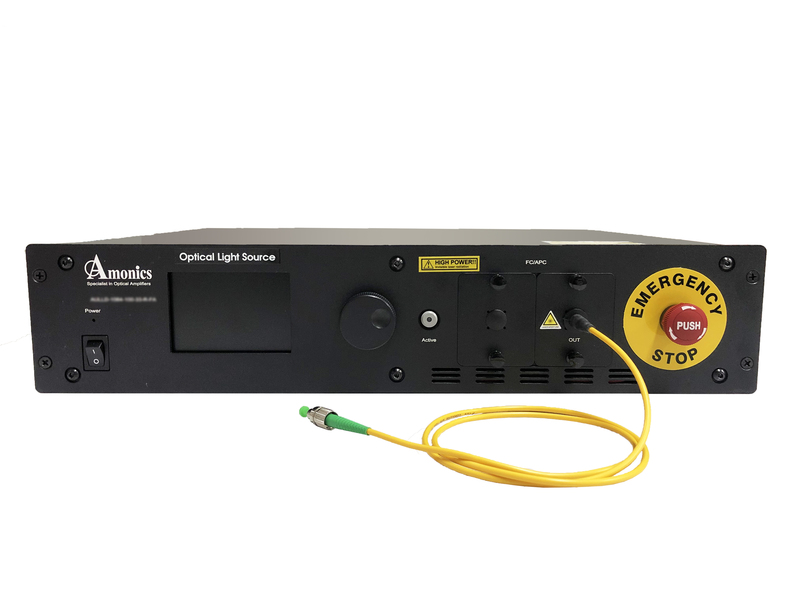

Raman Fiber Laser


Amonics' high power Raman Fiber Laser is the perfect solution for applications with a high channel count and long spans, such as remote pump source for submarine transmission systems to deliver high power at a wavelength in the range between 1100nm and 1650nm.

It is also a very useful tool for testing and characterization of active and passive components in the wavelength range of 1100nm to 1650nm.

Specifications

ARFL
Center Wavelength 1100 nm to 1650 nm
Mode of Operation CW
Average Output Power 1 W, 2 W, 3W, 5 W, 10 W
Laser Linewidth Typ. 0.2 to 2.0 nm
In-Band Power Typ. 95 %
Output Isolation Typ. 25 dB (Option)
Polarization Linear or random
Beam Quality M^2 Typ. 1.1, Max. 1.2
Output Power Tunability 10 % to 100 %
Control Mode ACC
Customization wavelength or other output power level is available. Please contact us on the required specifications.

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VAC 90 - 240, 47 - 63Hz
2U Rackmount Dimensions mm 485(W) x 515(D) x 150(H) or 485(W) x 360(D) x 150(H)
3U Rackmount Dimensions mm 485(W) x 615(D) x 150(H)
Control Keylock switch, optical output power
Optical Power Monitoring Output power, Seed power
Remote Control Port RS232, TCP/IP ethernet (optional)
Protection Pump laser (TEC) overheat
Optical Port Main output, Output tap
Output Termination FC/APC, FC/UPC, SC/APC, SC/UPC, Collimator, Bare fiber

Ordering Information

Product Code
ARFL-aa-bbbb-cc-R-dd
aa: Default (or unspecified) for single mode, PM for polarization maintaining
bbbb: Wavelength in nm
cc: Output power in dBm
dd: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, CL for collimator, NC for bare fiber


Key Features

Turnkey operation
Wide range of wavelength selection
High output power up to 10W
Linear or Random polarized output
RS232 or TCP/IP computer interface
Highly reliability
No water cooling
