L-Band & Extended L-Band DWDM EDFA


L-band and Extended L-band DWDM Erbium-doped Fiber Amplifiers (EDFA) are among the Amonics’ specialist products. They are designed with high-power pump laser and high-stability pump combiners, renowned for robustness in high power boosting. The EDFAs feature high output power, high gain with very low noise, and they can be customized to accommodate a wide range of input signal levels. They are thus ideal for various demanding applications.

The turnkey microprocessor-controlled EDFAs provide illustrative alarms and status indicators. An integrated RS232 computer interface enables easy control, diagnostic functions and data acquisition. The EDFAs are available in both benchtop and rackmount casings.

Specifications

AEDFA-L-DWDM AEDFA-L-EX1-DWDM AEDFA-L-EX2-DWDM Remarks
Saturation Output Power +22 dBm +22 dBm +22 dBm
Wavelength 1570 to 1603 nm 1570 to 1610 nm 1570 to 1620 nm
Gain (dB) 21, 25 21, 25 21, 25 dB Input Power (dBm): +1, -3
Noise Figure Typ. 6.0 dB, Max. 6.5 dB Typ. 6.5 dB, Max. 7.0 dB Typ. 6.5 dB, Max. 7.5 dB

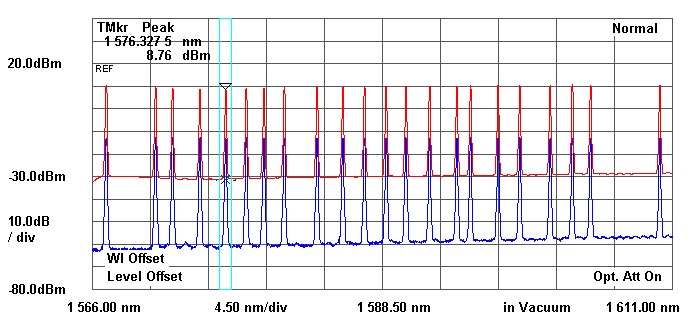

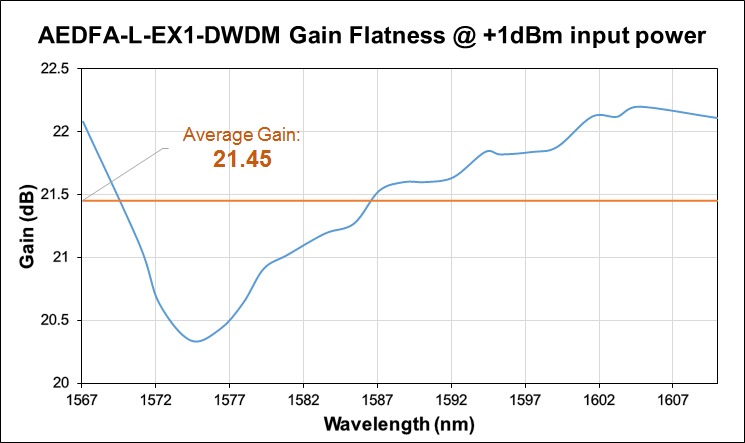

Gain Flatness (peak to peak) Typ. 1.0 dB, Max. 2.0 dB Typ. 1.5 dB, Max. 2.0 dB Typ. 1.5 dB, Max. 2.0 dB
Input & Output Isolation Min. 30 dB Min. 30 dB Min. 30 dB
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB
Control Mode ACC, APC, AGC (optional) ACC, APC, AGC (optional) ACC, APC, AGC (optional)
Other output power models are available upon request.

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VAC 90 – 240, 47 – 63Hz
Benchtop Dimensions mm 260(W) x 330(D) x 120(H)
1U Rackmount Dimensions mm 485(W) x 360(D) x 45(H)
Mechanical Safety Control Key-lock switch, BNC interlock key
Optical Power Monitoring Output power, Input power (optional)
Remote Control Port DB-9 female (RS232), Control software included, RJ-45 (TCP/IP Ethernet) (optional)
Protection Pump laser (TEC) overheat
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC
Optical Fiber SMF-28

Options

Gain Flattening Filtering

Ordering Information

Product Code
AEDFA-L-DWDM-aa-b-cc or AEDFA-L-EX1-DWDM-aa-b-cc or AEDFA-L-EX2-DWDM-aa-b-cc
aa: Saturated output power in dBm
b: B for Benchtop, R for 19 inch Rackmount
cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC


Key Features

Turnkey device
RS232/Ethernet computer interface
High output power
High gain
Low noise figure
Highly reliable and durable
