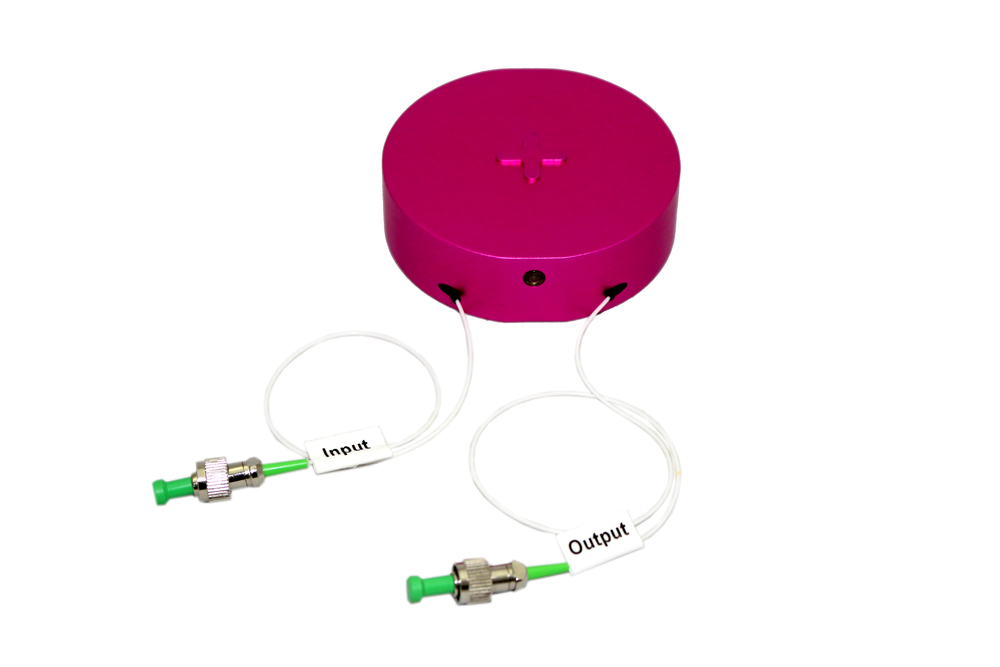

Mini EDFA modules


Amonics Mini EDFA is small in size, compact, stackable, and yet it comes with full and reliable EDFA performance. It is particularly suitable for scalable R&D experiments, quick testing in primitive working environment or budget laboratory setups.

The minature EDFA is powered up by a 5V USB port. It can be connected to a computer directly through a USB cable in order to control and monitor output power. Uncooled pump laser is used to minimize power consumption and keep the EDFA on low maintenance. Not only limited to standard EDFA, the compact casing design is also suitable for optical packet switching system.

Specifications

AEDFA-13-Mini AEDFA-L-11-Mini
Saturation Output Power* (at 0 dBm input signal) Typ. +13 dBm, Min. +12 dBm Typ. +11 dBm, Min. +10 dBm
Small Signal Gain Min. 28 dB input signal at -30 dBm, 1550 nm Min. 22 dB input signal at -30 dBm, 1584 nm
Noise Figure (at -3 dBm input signal) Typ. 5.0 dB, Max. 5.5 dB Typ. 6.0 dB, Max. 6.5 dB
Operating Wavelength 1530 nm to 1565 nm 1570 nm to 1603 nm
Input Isolation Min. 30 dB Min. 30 dB
Output Isolation Min. 30 dB Min. 30 dB
Polarization Mode Dispersion Typ. 0.3 ps, Max. 0.5 ps Typ. 0.3 ps, Max. 0.5 ps
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB
Control Mode APC, ACC APC, ACC
Dimensions Φ 75 mm x 22 mm Φ 75 mm x 22 mm
Power Consumption Typ. 1.5 W, Max. 2.0 W Typ. 1.5 W, Max. 2.0 W
Power Supply & Remote Control Port (Control software included) Micro USB Micro USB
*Other output power models are available upon request.

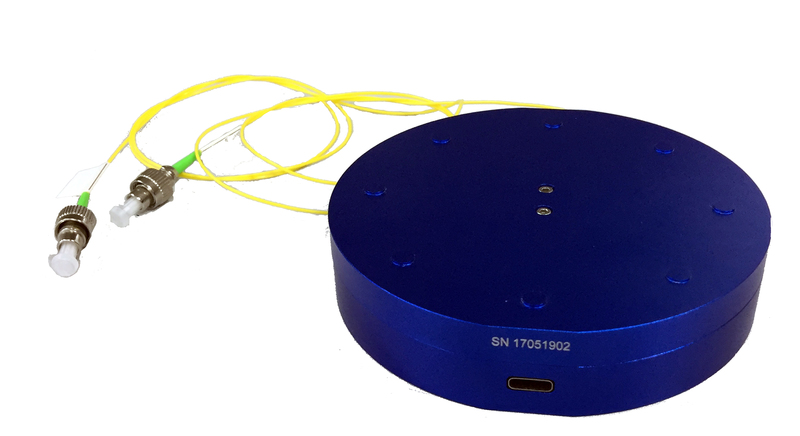

PKT Mini EDFA module specifications:

AEDFA-PKT-18-Mini
Operating Wavelength 1530 – 1565nm
Saturation Output Power Up to (at 0 dBm input signal) Typ. +18dBm, Min. +17dBm
Noise Figure (at -3dBm input signal) Typ. 5.0 dB, Max. 5.5dB
Small Signal Gain Min. 17 dB input signal at 0 dBm
Gain Transient Error (@-3dBm input, 4096bit@10Gbps 100ns Guard time) Typ.+/- 0.1, Max. +/- 0.2 dB/μs
Input / Output Isolation Min. 30dB
Polarization Mode Dispersion Typ. 0.3ps, Max. 0.5ps
Polarization Dependent Gain Typ. 0.3dB, Max. 0.5dB
Control Mode APC, ACC
Dimensions Φ 100mm x 22mm
Power Consumption Typ. 3W, Max. 4.0W
Power Supply & Remote Control Port USB (Type C) (Control software included)
Other output power models are available upon request.

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VDC 5.0 ± 0.1
Mechanical Control Emission button with LED
Optical Power Monitoring Output power
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC
Optical Fiber Min. 0.5m long SMF-28

Ordering Information

Product Code
C-Band: AEDFA-aa-Mini-bb, L-Band: AEDFA-L-aa-Mini-bb, C-Band PKT: AEDFA-PKT-aa-Mini-bb
aa: Saturation output power in dBm
bb: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC


Key Features

Small foot print
USB port control & monitor
Stackable
Low power consumption
Reliable and durable
