C+L Band EDFA


Amonics offers C+L band EDFAs which are commonly used in a wide range of applications including free space communications, coherent beam combining and detection systems. The compact turnkey benchtop or 19” rackmount unit incorporates a user-friendly front panel housing with a LCD monitor display, key switch, power adjust control knob and optical connectors. Computer interface through RS232 or Ethernet is possible.

Specifications

AEDFA-CL-17 AEDFA-CL-20 AEDFA-CL-23
Saturation Output Power (at 0dBm input signal) Min. +17 dBm Min. +20 dBm Min. +23 dBm
Input Signal Level -6 to +3 dBm -6 to +3 dBm -6 to +3 dBm

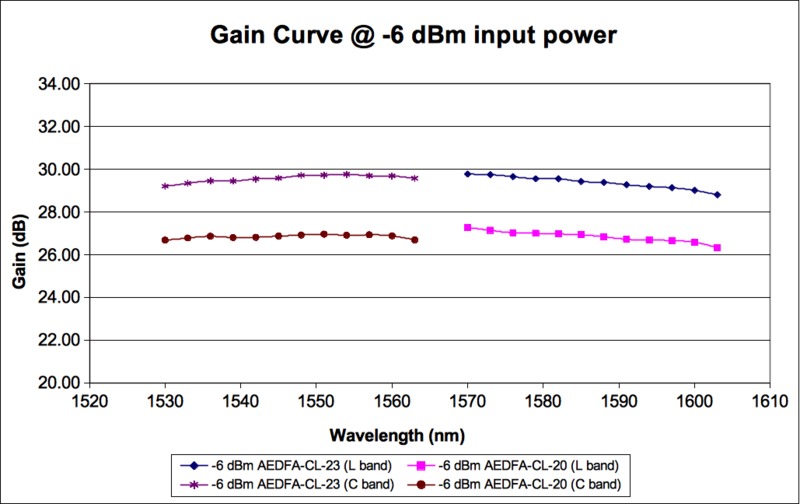

Small Signal Gain @ -6dBm Input Signal Min. 23 dB Min. 26 dB Min. 29 dB
Operation Wavelength 1528 nm to 1563 nm; 1570 nm to 1603 nm 1528 nm to 1563 nm; 1570 nm to 1603 nm 1528 nm to 1563 nm; 1570 nm to 1603 nm

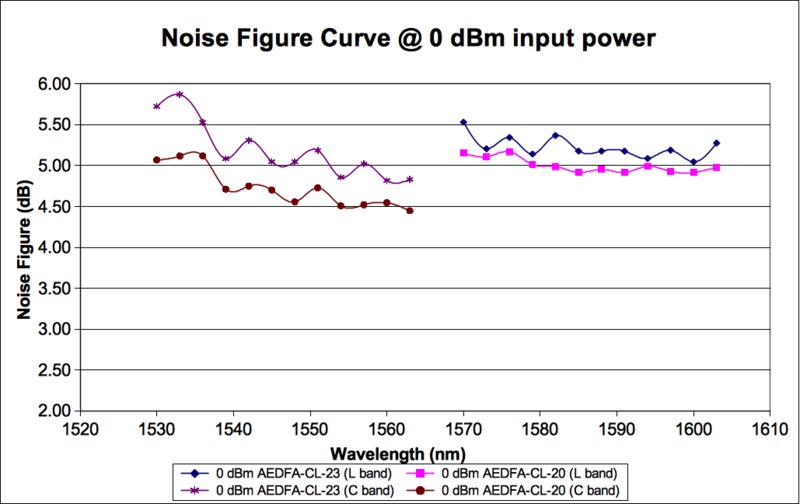

Noise Figure (at 0dBm input signal) Typ. 5.5 dB, Max. 6.5 dB Typ. 5.5 dB, Max. 6.5 dB Typ. 5.5 dB, Max. 6.5 dB
Input / Output Isolation Min. 30 dB Min. 30 dB Min. 30 dB
Control Mode ACC, APC ACC, APC ACC, APC
Other output power models are available upon request

General Parameters

unit value remarks
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VAC 90 – 240, 47 – 63Hz
Benchtop Dimensions mm 260(W) x 330(D) x 120(H)
1U Rackmount Dimensions mm 485(W) x 360(D) x 45(H) Other standard rackmount sizes are also available
Mechanical Safety Control Key-lock switch, BNC interlock key
Optical Power Monitoring Output power, Input power (optional)
Remote Control Port DB-9 female (RS232), Control software included, RJ-45 (TCP/IP Ethernet) (optional)
Protection Pump laser (TEC) overheat
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC
Optical Fiber SMF-28

Options

Gain flattening filtering

Ordering Information

Product Code
AEDFA-CL-aa-b-cc
aa: Saturated output power in dBm
b: B for Benchtop, R for 19 inch Rackmount
cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC


Key Features

Turnkey device
RS232 / Ethernet computer interface
High output power
High gain
Low noise figure
Highly reliable and durable
