High Power EDFA


Amonics’ High Power EDFA series offer saturated output power from 0.5W to 20W. It is a standalone turnkey device, available in benchtop or rackmount casing.

The front panel includes a LCD monitor display, key switch, power adjust control knob, and fiber input and output adaptors. A RS232 computer interface is provided for control and monitoring. This EDFA is well suited for R&D in the fields of telecommunications, fiber optic sensing, and CATV applications.

Benchtop High Power EDFA Specifications

AEDFA-27-B AEDFA-30-B AEDFA-33-B

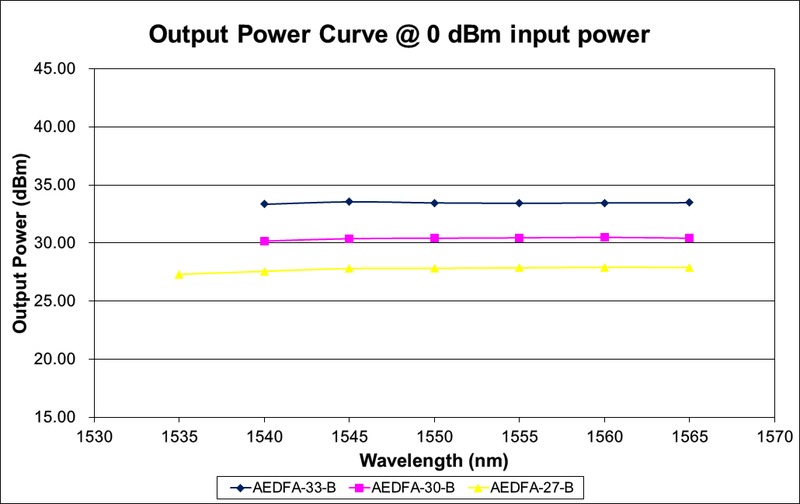

Saturation Output Power (at 0dBm input signal) Min. +27 dBm Min. +30 dBm Min. +33 dBm
Input Signal Level -6 to +3 dBm -6 to +3 dBm -6 to +3 dBm

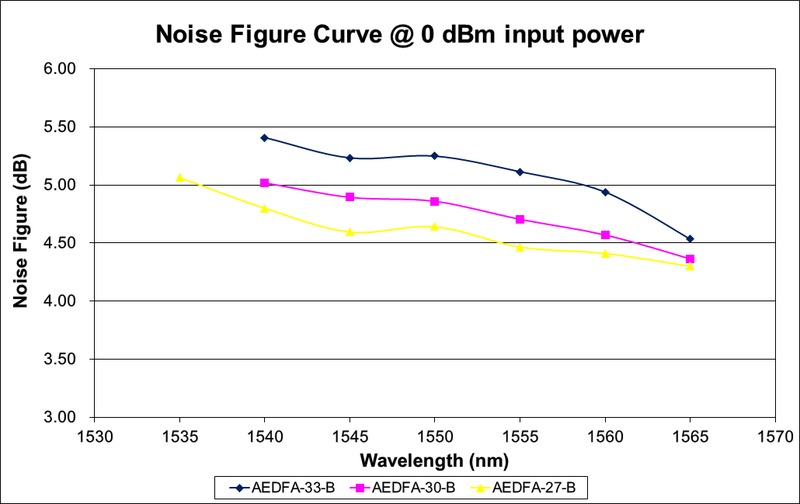

Noise Figure (at 0dBm input signal) Typ. 5.5 dB Typ. 6.0 dB Typ. 6.0 dB
Operating Wavelength 1535 nm to 1565 nm 1540 nm to 1565 nm 1540 nm to 1565 nm
Input Isolation Min. 30 dB Min. 30 dB Min. 30 dB
Output Isolation Min. 30 dB Min. 30 dB Min. 30 dB
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB
Control Mode ACC, APC, AGC (optional) ACC, APC, AGC (optional) ACC, APC, AGC (optional)
L-Band or other output power models are available upon request

Rackmount High Power EDFA Specifications

AEDFA-37-R AEDFA-40-R AEDFA-43-R
Saturation Output Power Min. +37 dBm (at +3 dBm input signal) Min. +40 dBm (at +3 dBm input signal) Min. +43 dBm (at +10 dBm input signal)
Input Signal Level -6 to +13 dBm -6 to +13 dBm -6 to +13 dBm
Noise Figure Typ. 6.0 dB (at +3 dBm input signal) Typ. 6.5 dB (at +3 dBm input signal) Typ. 8.5 dB (at +10 dBm input signal)
Operating Wavelength 1545 nm to 1565 nm 1545 nm to 1565 nm 1550 nm to 1565 nm
Input Isolation Min. 30 dB Min. 30 dB Min. 30 dB
Output Isolation Min. 30 dB Min. 30 dB Min. 30 dB
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB
Control Mode ACC, APC (optional) ACC, APC (optional) ACC, APC (optional)
L-Band or other output power models are available upon request

General Parameters

unit value
Operation Temperature °C 0 to 40
Storage Temperature °C -10 to 70
Power Supply VAC 90 – 240, 47 – 63Hz
Benchtop Dimensions mm 260(W) x 330(D) x 120(H)
2U Rackmount Dimensions mm 485(W) x 515(D) x 90(H) or 485(W) x 360(D) x 90(H) for AEDFA-37-R
3U Rackmount Dimensions mm 485(W) x 615(D) x 150(H) for AEDFA-40-R, AEDFA-43-R
Mechanical Safety Control Key-lock switch, BNC interlock key
Optical Power Monitoring Output power, Input power (optional)
Remote Control Port DB-9 female (RS232), Control software included RJ-45 (TCP/IP Ethernet) (optional)
Protection Pump laser (TEC) overheat
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC, Bare fiber
Optical Fiber SMF-28

Options

Narrow bandpass filters

Ordering Information

Product Code
AEDFA-aa-b-cc
aa : Saturation output power in dBm
b : B for Benchtop, R for 19” Rackmount
cc : FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, NC for bare fiber


Key Features

Turnkey device
RS232/Ethernet interface
High output power, up to 20W
High gain
Low noise figure
Highly reliable and durable
