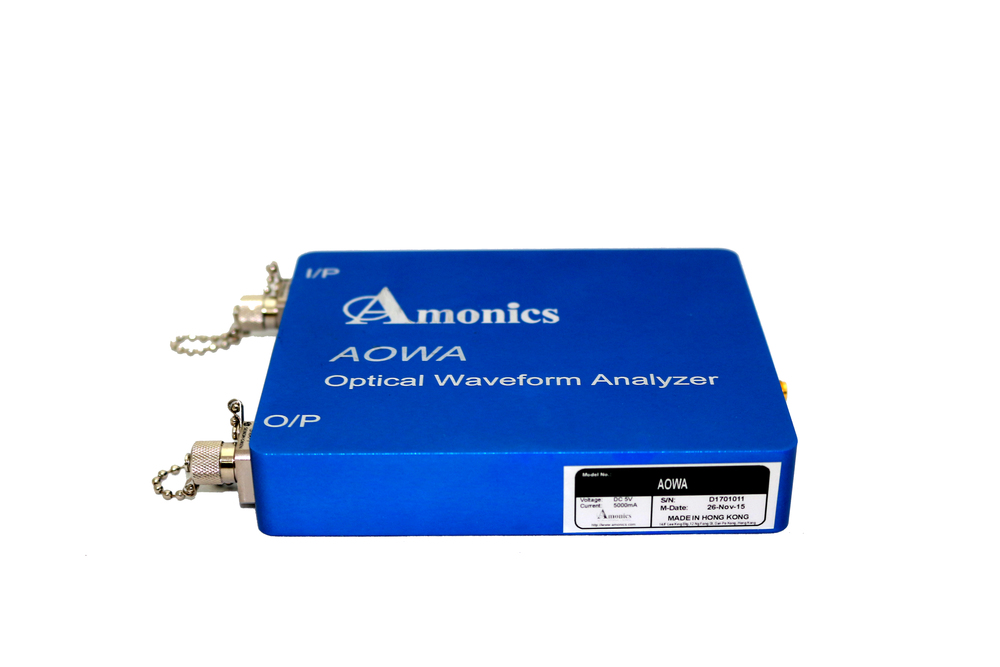

Waveform Analyzer

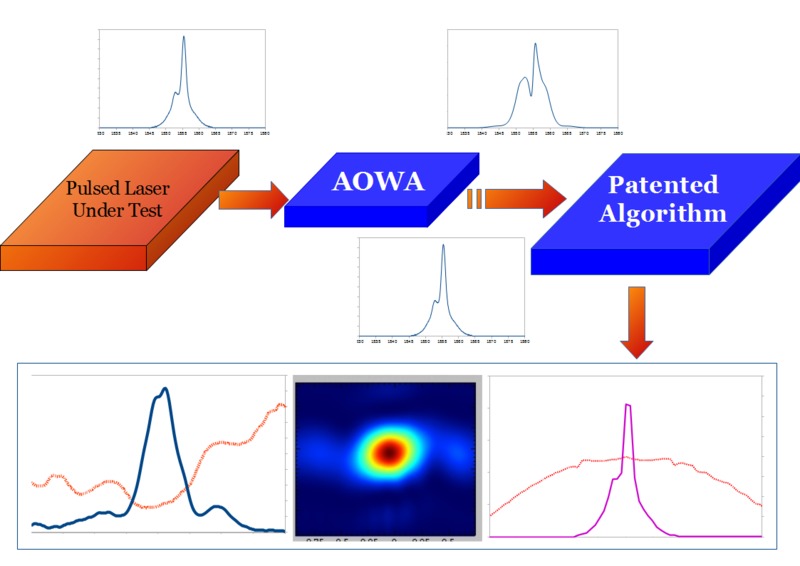

Amonics' optical waveform analyzer (AOWA) is the implementation of the state-of-art technology, in collaboration with a leading University in Japan, to facilitate cutting edge optical pulse analysis. AOWA provides a complete solution to characterize optical short pulses in picosecond to femtosecond range. Full information on pulse intensity and phase can be extracted from the optical spectrum, including chirp, temporal profile, pulse shape and pulse width. The main supporting equipment required is an optical spectrum analyzer.

Specifications

AOWA
Wavelength 1300 nm to 1750 nm
Pulse Width Min. 0.1 ps to 20 ps
Temporal Resolution Max. 30 fs
Average Power Sensitivity Min. -20 dBm
Peak Power Sensitivity 37 dBm

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VDC +5 ± 0.1
Dimensions mm 100(W) x 120(D) x 22(H)
Power Consumption W Typ. 2.0, Max. 2.5

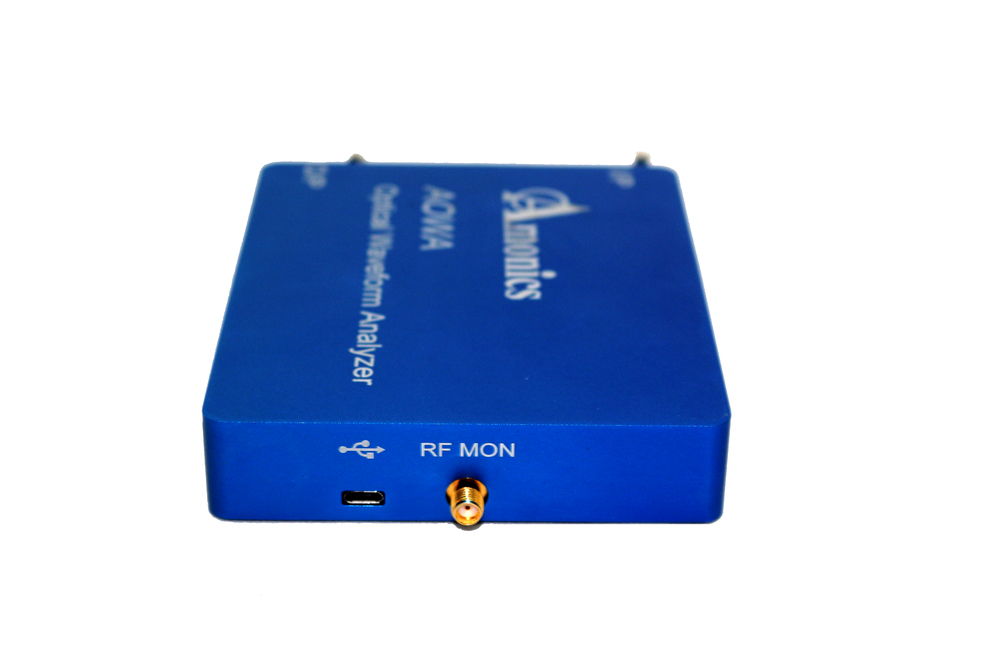

Control Port DB-9 Female, RS232 (control software included)
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC

Ordering Information

Product Code
AOWA


Key Features

Input pulses

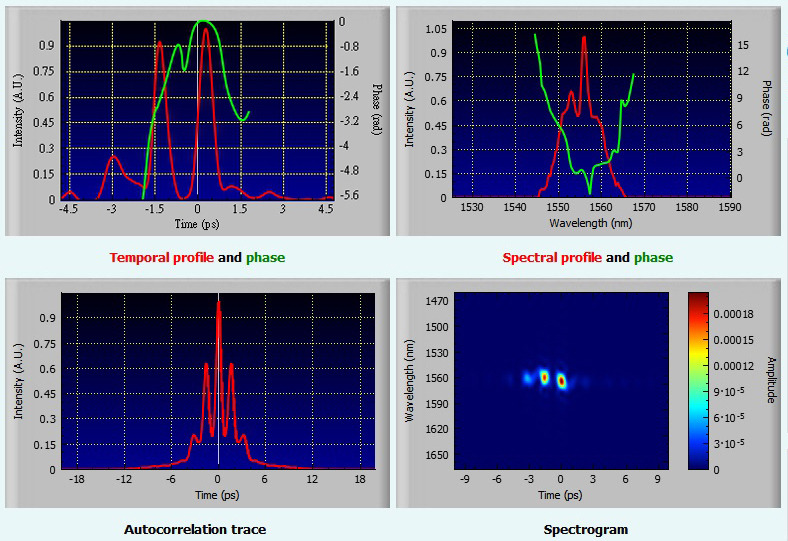

Output information
Portable
User friendly computer interface
Simple plug and play measurement
No mechanical alignments required
Low cost
Maintenance free
Highly reliable and durable
