Optical Communication Platform (DWDM)

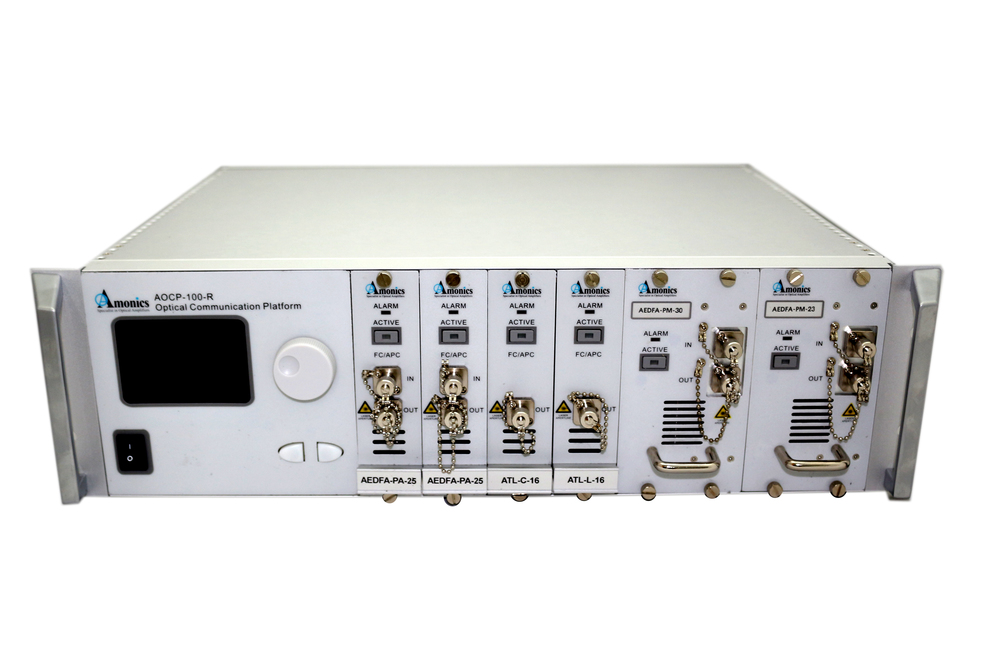

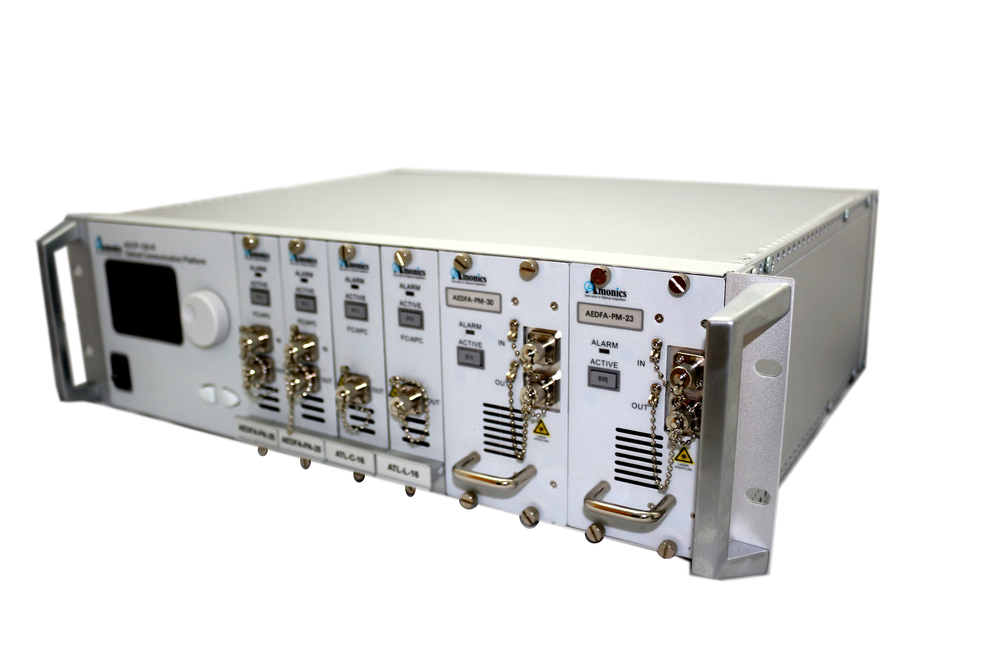

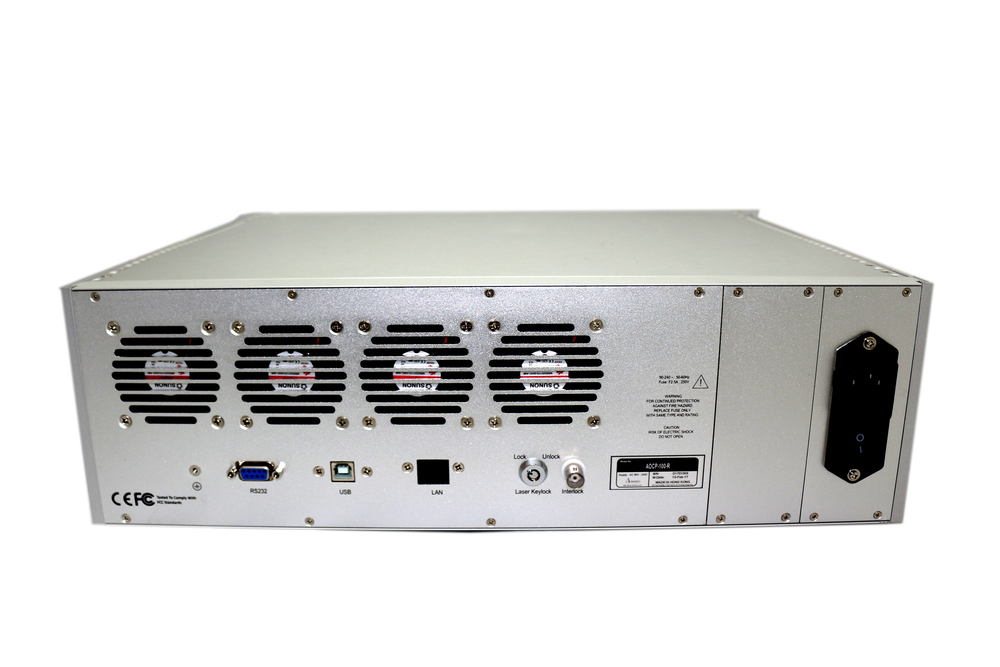

The new Amonics Optical Communication Platform (AOCP-100) is designed to house up to 8 optical plug-in modules including tunable laser, optical fiber amplifier, optical power meter, variable optical attenuator, DFB laser, SLD, optical switch and many more. All modules are supported by Amonics.

Users can control and monitor each module individually through the front panel LCD display and remote control via USB. Computer interface via TCP/IP ethernet will be possible.

The Optical Communication Platform is available in standard 3U mainframe casing.

Plug-in Module Specifications: C-Band DWDM EDFA Specifications

AEDFA-C-DWDM-AOCP AEDFA-C-EX-DWDM-AOCP Remarks
Saturation Output Power +22 dBm +22 dBm
Wavelength 1527 nm to 1563 nm 1527 nm to 1567 nm
Gain 21 dB, 25 dB, 30 dB 21 dB, 25 dB, 30 dB Input Power +1 dBm, -3 dBm, -8 dBm
Noise Figure Typ. 5.5 dB, Max 6.0 dB Typ. 5.5 dB, Max 6.0 dB
Gain Flatness (peak to peak) Typ. 1.0 dB, Max. 2.0 dB Typ. 1.0 dB, Max. 2.0 dB
Input & Output Isolation Min. 30 dB Min. 30 dB
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB
Control Mode ACC.APC.AGC(optional) ACC.APC.AGC(optional)
Dimension 70.4 mm x 128.7 mm x 232 mm 70.4 mm x 128.7 mm x 232 mm 2 slots
Other output power models are available upon request

Plug-in Module Specifications: L-Band DWDM EDFA Specifications

AEDFA-L-DWDM-AOCP AEDFA-L-EX1-DWDM-AOCP AEDFA-L-EX2-DWDM-AOCP Remarks
Saturation Output Power +22 dBm +22 dBm +22 dBm
Wavelength 1570 nm to 1603 nm 1570 nm to 1610 nm 1570 nm to 1620 nm
Gain 21 dB, 25 dB 21 dB, 25 dB 21 dB, 25 dB Input Power : +1 dBm, -3 dBm
Noise Figure Typ. 6.0 dB, Max 6.5 dB Typ. 6.5 dB, Max 7.0 dB Typ. 6.5 dB, Max 7.5 dB
Gain Flatness (peak to peak) Typ. 1.0 dB, Max. 2.0 dB Typ. 1.5 dB, Max. 2.0 dB Typ. 2.0 dB, Max. 2.5 dB
Input & Output Isolation Min. 30 dB Min. 30 dB Min. 30 dB
Control Mode ACC, APC, AGC (optional) ACC, APC, AGC (optional) ACC, APC, AGC (optional)
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB Typ. 0.3 dB, Max. 0.5 dB
Control Mode ACC, APC, AGC (optional) ACC, APC, AGC (optional) ACC, APC, AGC (optional)
Dimension 70.4 mm x 128.7 mm x 232 mm 70.4 mm x 128.7 mm x 232 mm 70.4 mm x 128.7 mm x 232 mm 2 slots
Other output power models are available upon request.

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VAC 90 – 240, 47 – 63Hz
Mainframe Dimensions mm 482.6(W) x 345(D) x 132(H)
Sub-module Dimensions (per unit) mm 35.2(W) x 232(D) x 128.7(H)
Maximum Slots for Sub-modules 8
Mechanical Safety Control Key-lock switch, BNC interlock key
Optical Power Monitoring Output power, Input power (optional)
Remote Control Port USB
Cursor Navigation Rotary Key Knob, Push Button

Ordering Information

Product Code
AOCP-100-R
Please contact us on the specifications and product codes of plug-in modules

Key Features

Turnkey device
USB computer interface
Support up to four 2-slot plug-in modules
User friendly
Compact and durable
