OCT Super-wideband Light source

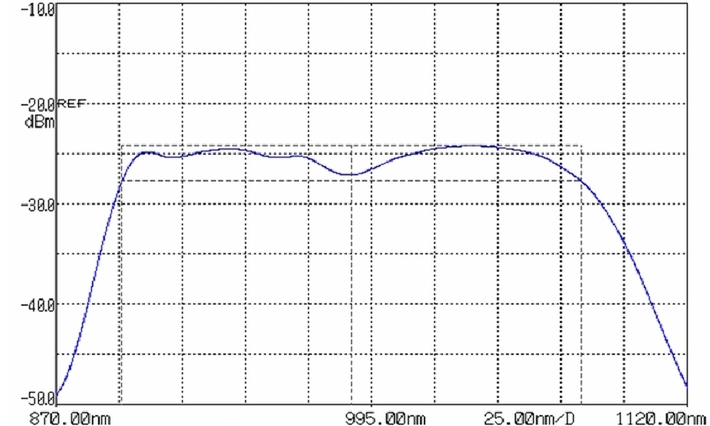

Amonics' ALS-OCT super-wideband light source provides high spectral density, above -30dB/nm, across 890nm to 1080nm. It is an ideal tool for the characterization of fiber laser components. This broadband source is also extremely effective in high resolution optical coherent tomography (OCT) applications. It is available in both benchtop and module casings.

The benchtop version incorporates a user-friendly front panel housing with a LCD monitor display, key switch, power control knob and optical connectors. RS232 or Ethernet computer interface is also equipped.

The OEM module version is an ideal building block for OEM system integration, especially in fiber optic sensing and optical tomography applications. It requires a single +5V power supply only.

Specifications

ASLD-OCT
Output Power Min. 1 mW
Spectral Range 890 nm to 1080 nm
Min. Spectral Density -30 dBm/nm
Output Stability Max. + / -0.02dB (over 8 hrs), Max. + / -0.005 dB (over 5 mins)

General Parameters

unit benchtop module
Operation Temperature °C 0 to +40 0 to +40
Storage Temperature °C -10 to +70 -10 to +70
Power Supply V 90 – 240VAC, 47 – 63Hz 5.0 ± 0.1 VDC
Dimensions mm 260(W) x 330(D) x 120(H) 100(W) x 120(D) x 18(H)
Electrical Connector NA 14-pin MIL Socket
Protection Pump laser (TEC) overheat Pump laser (TEC) overheat
Optical Power Monitoring Output power Output power
Mechanical Safety Control Key-lock switch, BNC interlock key NA
Remote Control Port RS232 / Ethernet NA
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC FC/APC, FC/UPC, SC/APC, SC/UPC
Optical Fiber Single mode fiber Single mode fiber

Options

Output isolation

Ordering Information

Product Code
ASLD-OCT-a-bb
a: M for Module, B for Benchtop
bb: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC


Key Features

Wide spectral range
High output power
Good spectral stability
Compact
Good performance cost ratio
Highly reliable and durable
