E-Band Bismuth-doped Fiber Amplifier

Amonics’ E-Band Bismuth-doped fiber amplifier (BDFA) uses bismuth-doped fiber as the gain medium. The BDFA features high small signal gain and low noise figure. The silica-based Bismuth-doped fiber offers the similar fundamental advantages as erbium-doped fiber used for amplification in the C and L bands. The E-band BDFA are available to fulfill the increasing bandwidth demands.

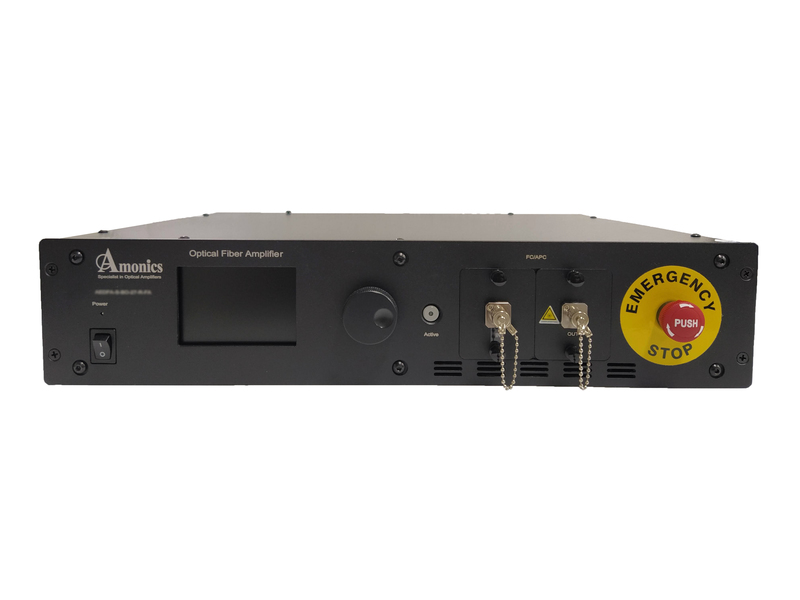

The turnkey microprocessor-controlled BDFAs provide illustrative alarms and status indicators. An integrated RS232 computer interface enables easy control, diagnostic functions and data acquisition. The BDFAs are available in both benchtop and rackmount casings.


Operating Wavelength 1425 nm to 1465 nm
Input Signal Level -30 to 0 dBm

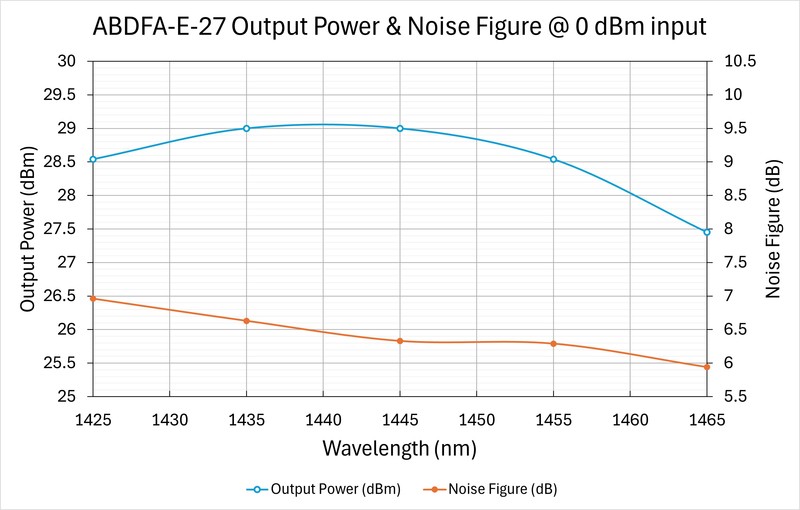

Output Power at 0 dB input power Min. 23 dBm
Noise Figure at 1445 nm, -10 dBm input power Max. 7.0 dB
Input / Output Isolation Min. 30 dB
Control Mode ACC, APC (optional)

General Parameters

unit value
Operation Temperature °C 0 to 40
Storage Temperature °C -10 to 70
Power Supply VAC 90 – 240, 47 – 63Hz
Dimensions mm 485(W) x 360(D) x 90(H)
Mechanical Safety Control Key-lock switch, BNC interlock key
Optical Power Monitoring Output power, Input power
Remote Control Port DB-9 female (RS232), Control software included RJ-45 (TCP/IP Ethernet) (optional)
Protection Pump laser (TEC) overheat
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC
Optical Fiber SMF-28

Ordering Information

Product Code
aa : Saturation output power in dBm
b: R for 19” Rackmount
cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC


Key Features

High output power > 23 dBm
Similar gain & noise figure as typical EDFA
Lower power consumption compared to conventional Raman amplifier
Distortion-free amplification
