C-Band Raman Amplifier
Amonics Raman Amplifier is a high-power laser light source for distributed optical amplification of optical signals in the C or L band.
The Raman Amplifier features 2 or 4 pumping wavelengths for gain flattened amplification. It is a ready-to-use optical amplifier equipped with a broadband pump/signal combiner and individual power monitoring for each channel. The Raman Amplifier is available in both benchtop and rackmount casings, as well as customized modules.
Specifications
| ARA-C-500 | ARA-C-800 | |
|---|---|---|
| Operating Wavelength | 1525 nm to 1563 nm | 1529 nm to 1562 nm |
| Optical Gain | Typ. 10 dB | Typ. 18 dB |

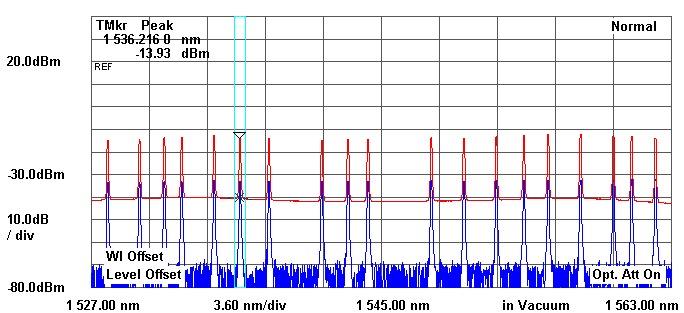

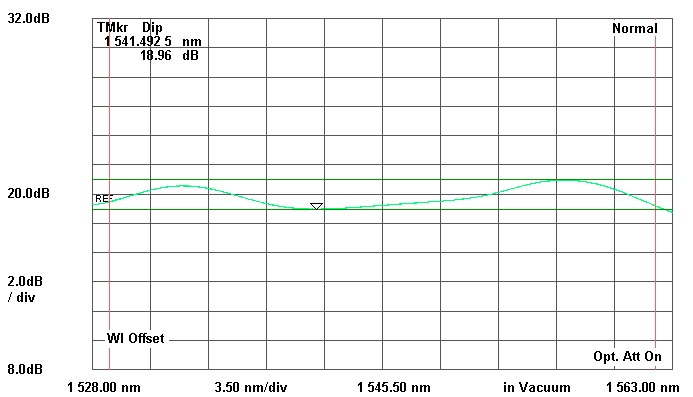

| Gain Flatness | Max. 2 dB | Max. 2.5 dB |
| Total Pump Power | Typ. 500 mW | Typ. 800 mW |
| Effective Noise Figure | Typ. -1.0 dB | Typ. -1.0 dB |
| Signal Insertion Loss | Typ. 0.7 dB | Typ. 0.7 dB |
| Degree of Polarization | Typ. 5 %, Max. 10 % | Typ. 5 %, Max. 10 % |
| Control Mode | ACC | ACC |
Other output power models are available upon request
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to +40 |
| Storage Temperature | °C | -10 to +70 |
| Power Supply | VAC | 90 – 240VAC, 47 – 63Hz for benchtop and rackmount; 5.0 ± 0.1VDC for module |
| Benchtop Dimensions | mm | 260(W) x 330(D) x 120(H) |
| 1U Rackmount Dimensions | mm | 485(W) x 360(D) x 45(H) |
| 2U Rackmount Dimensions | mm | 485(W) x 360(D) x 90(H) |
| Module Dimensions | mm | 156(W) x 210(D) x 33(H) |
| Mechanical Safety Control (for Benchtop and Rackmount) | Key-lock switch, BNC interlock key | |
| Optical Power Monitoring | Output power, Total pump power | |
| Remote Control Port | DB-9 female (RS232), Control software included, RJ-45 (TCP/IP Ethernet) (optional for benchtop and rackmount) | |
| Protection | Pump laser (TEC) overheat | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | |
| Optical Fiber | SMF-28 |
Ordering Information
| Product Code |
|---|
| ARA-C-aaa-b-cc |
| aaa: Pump power, 500 for 500mW, 800 for 800mW |
| b: B for Benchtop case, R for 19” Rackmount case, M for module |
| cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Key Features
| High output power |
| High gain |
| Low noise figure |
| RS232 computer interface |
| Highly reliable and durable |
