High Power Pulse YDFA


Amonics' pulse YDFA can amplify 1 um short pulse to high optical pulse energy. By using large core specialty Ytterbium fiber, the detrimental effects such as pulse distortion due to gain transient and nonlinearities such as SBS and SRS can be highly suppressed. The applications of the YDFAs include laser welding, material processing, biomedical treatments, and free space sensing as such airborne topographic lidars.

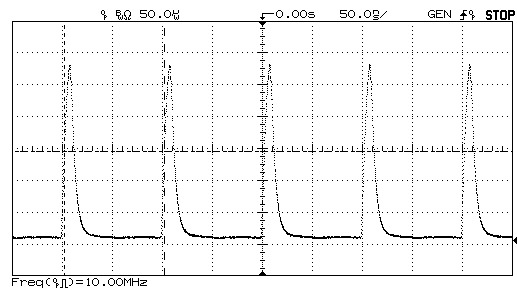

High Power Pico-second YDFA Specifications

AYDFA-PS AYDFA-PM-PS
Operating Wavelength 1054 nm to 1074 nm 1054 nm to 1074 nm
Saturation Output Power up to +33 dBm +33 dBm
Pulse Peak Power up to (No distortion) 1 kW 1 kW
Input Signal Peak Level +10 dBm +10 dBm
Pulse Width 50 ps to 1000 ps 50 ps to 1000 ps
Pulse Repetition Rate 1 MHz to 10 GHz 1 MHz to 10 GHz
Input Isolation Min. 25 dB Min. 25 dB
Output Isolation Min. 20 dB Min. 20 dB
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB NA
Polarization Extinction Ratio NA Typ. 23 dB, Min. 20 dB
Control Mode ACC, APC (Option) ACC, APC (Option)
Other wavelength ranges and output power models are available upon request.

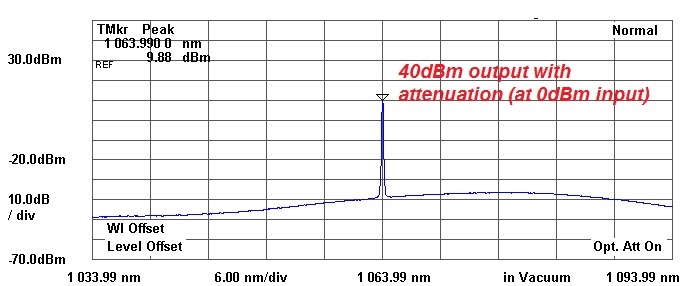

High Power Nano-second YDFA Specifications

AYDFA-NS AYDFA-PM-NS
Operating Wavelength 1054 nm to 1074 nm 1054 nm to 1074 nm
Saturation Output Power up to +40 dBm +40 dBm
Pulse Peak Power up to (No distortion) 10 kW 10 kW
Input Signal Peak Level +10 dBm +10 dBm
Pulse Width 10 ns to 1000 ns 10 ns to 1000 ns
Pulse Repetition Rate 20 kHz to 100 MHz 20 kHz to 100 MHz
Input Isolation Min. 25 dB Min. 25 dB
Output Isolation Min. 20 dB Min. 20 dB
Polarization Dependent Gain Typ. 0.3 dB, Max. 0.5 dB NA
Polarization Extinction Ratio NA Typ. 23 dB, Min. 20 dB
Control Mode ACC, APC (Optional) ACC, APC (Optional)
Other wavelength ranges and output power models are available upon request.

General Parameters

unit value
Operation Temperature °C 0 to +40
Storage Temperature °C -10 to +70
Power Supply VAC 90 – 240, 47 – 63Hz
Benchtop Dimensions mm 260(W) x 330(D) x 120(H) for AYDFA-PS and AYDFA-PM-PS
2U Rackmount Dimensions mm 485(W) x 515(D) x 90(H) or 485(W) x 360(D) x 90(H) for AYDFA-NS and AYDFA-PM-NS
3U Rackmount Dimensions mm 485(W) x 615(D) x 150(H) for AYDFA-NS and AYDFA-PM-NS
Control Keylock switch, optical output power
LCD Display Output power, Pump laser current
Computer Interface RS232 (Control software & connection cable included) / Ethernet (Optional)
Protection Pump laser overheat warning
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC, Collimator, Bare fiber (No output connectors for output power >2W)
Optical Fiber HI1060 for AYDFA-PS and PM980 for AYDFA-PM-PS
Optical Fiber 25/250GDF for AYDFA-NS and PM-25/250GDF for AYDFA-PM-NS

Options

Narrow bandpass filter

Ordering Information

Product Code
AYDFA(-PM)-PS-aaa-bbb-cc-B-dd or AYDFA(-PM)-NS-eee-fff-cc-R-dd
aaa : Pulse Width in ps
eee : Pulse Width in ns
bbb: Repetition Rate in MHz
fff: Repetition Rate in kHz
cc: Average Output Power in dBm
dd: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC, CL for collimator, NC for Bare fiber


Key Features

Turnkey Device
RS232 computer interface
High output power
Single mode fiber delivery
Highly reliability
Long operating life time
