Standard EDFA #2

Erbium-doped Fiber Amplifiers (EDFAs) are our core products. With years of experience on design and products, our EDFAs excel in stability, reliability and robustness. They have excellent track records with happy users around the world and enjoy huge success in various applications. The EDFAs feature high output power, high gain with very low noise, and they can be customized to accommodate a wide range of input signal levels.

The turnkey microprocessor-controlled EDFAs provide illustrative alarms and status indicators. An integrated RS232 computer interface enables easy control, diagnostic functions and data acquisition. All EDFAs are available in both benchtop and rackmount casings.

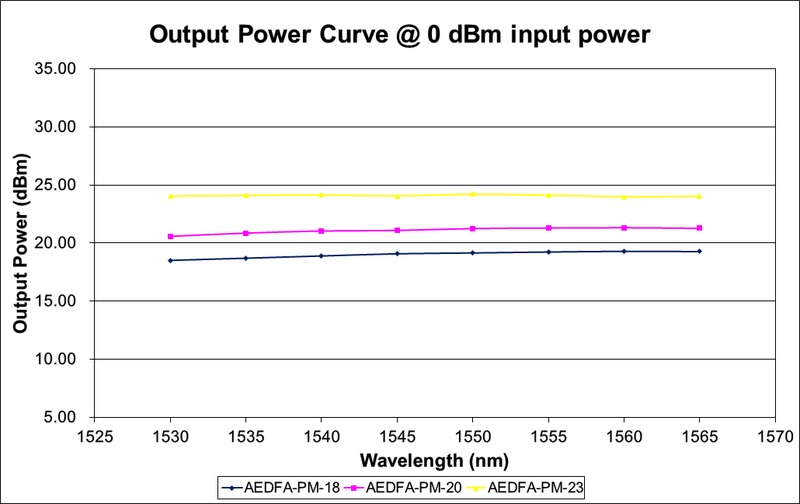

Saturation Output Power (at -3dBm input signal) > +13dBm > +18dBm > +23dBm
Small-Signal gain at 1550nm (at -30dBm input signal) > 30dBm > 32dBm > 37dBm
Noise Figure (typ.) (at -3dBm input signal) 5.0dB 5.5dB 6.0dB
Operating Wavelength 1528nm - 1565nm 1528nm - 1565nm 1528nm - 1565nm
Input Isolation > 30dB > 30dB > 30dB
Output Isolation > 30dB > 30dB > 30dB
Polarization Dependent Gain Typ. 0.3dB, Max. 0.5dB Typ. 0.3dB, Max. 0.5dB Typ. 0.3dB, Max. 0.5dB
Control Mode ACC, APC, AGC(optional) ACC, APC, AGC(optional) ACC, APC, AGC(optional)
Other output power models available upon request

General Parameters

unit value remarks
Operation Temperature °C 0 to 40
Storage Temperature °C -10 to 70
Power Supply VAC 90 – 240, 47 – 63Hz
Benchtop Dimensions mm 260(W) x 330(D) x 120(H)
1U Rackmount Dimensions (mm) mm 485(W) x 360(D) x 45(H) Other standard rackmount sizes are also available
Mechanical Safety Control Key-lock switch, BNC interlock key
Optical Power Monitoring Output power, Input power (optional)
Remote Control Port DB-9 female
Remote Control Port DB-9 female (RS232), Remote control software included RJ-45 (TCP/IP Ethernet) (optional)
Protection Pump laser (TEC) overheat
Optical Connector FC/APC, FC/UPC, SC/APC, SC/UPC
Optical Fiber SMF-28


Gain flattening filtering

Ordering Information

Product Code
xx: Saturation output power in dBm
y: B for Benchtop, R for 19” Rackmount
zz: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC

Key Features

Turnkey device
RS232/Ethernet computer interface
High output power
High gain
Low noise figure
Highly reliable and durable
