S-Band Bismuth-doped Fiber Amplifier (Multi-Channel)
Amonics’ S-Band Bismuth-doped fiber amplifier (BDFA) delivers high gain and low noise figure across the S-band. It expands the usable transmission bandwidth beyond the conventional C- and L-bands, enabling higher data capacity and longer transmission distances. The S-band BDFA is particularly valuable for DWDM networks and next-generation fiber systems.
The turnkey microprocessor-controlled BDFAs provide illustrative alarms and status indicators. An integrated RS232 computer interface enables easy control, diagnostic functions and data acquisition.
Specifications
| ABDFA-S-DWDM-23 | |
|---|---|
| Operating Wavelength | 1460 nm to 1520 nm |
| Composite Input Power | -6 to 10 dBm |

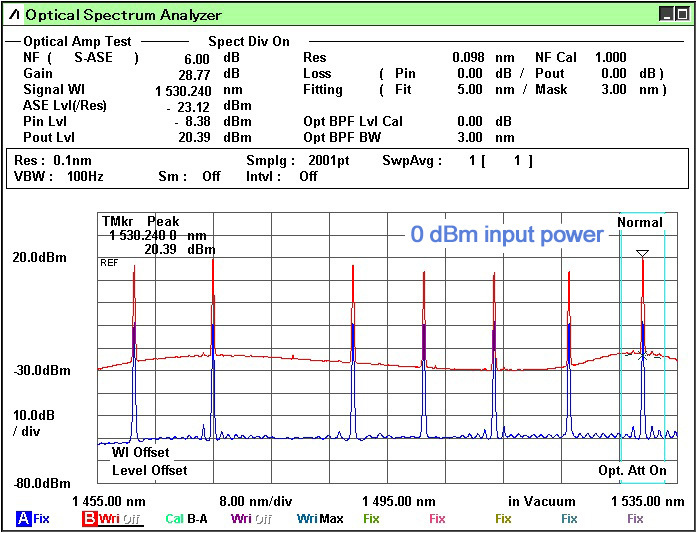

| Composite Output Power @ 0 dBm composite input power | Min. 23 dBm |
| Noise Figure @ 0 dBm composite input power | Typ. 6.0 dB, Max. 6.5 dB |

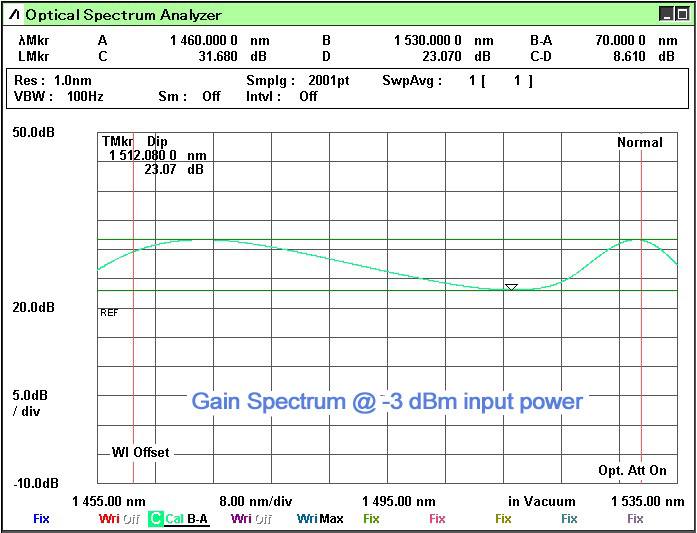

| Gain Flatness | Typ. 8 dB, Max. 10 dB |
| Input / Output Isolation | Min. 30 dB |
| Control Mode | ACC |
General Parameters
| unit | value | |
|---|---|---|
| Operation Temperature | °C | 0 to 40 |
| Storage Temperature | °C | -10 to 70 |
| Power Supply | VAC | 90 – 240, 47 – 63Hz |
| Dimensions | mm | 485(W) x 360(D) x 90(H) mm |
| Mechanical Safety Control | Key-lock switch, BNC interlock key | |
| Optical Power Monitoring | Output power, Input power | |
| Remote Control Port | DB-9 female (RS232), Control software included RJ-45 (TCP/IP Ethernet) (optional) | |
| Protection | Pump laser (TEC) overheat | |
| Optical Connector | FC/APC, FC/UPC, SC/APC, SC/UPC | |
| Optical Fiber | SMF-28 |
Ordering Information
| Product Code |
|---|
| ABDFA-S-DWDM-aa-b-cc |
| aa : Composite Output Power in dBm |
| b: R for 19” Rackmount |
| cc: FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC |
Applications
Key Features
| Turnkey device |
| RS232/Ethernet interface |
| High gain |
| Low noise figure |
| Highly reliable and durable |
